LC LED-N500TWG4D: 5mm Bicolor
White & Green LED Lamp
LC LED T1 ¾ 5mm White and Green LED Lamp Clear (30 Degree)
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(4) Sun Light Viewable
LED Lamp |
|
(2) Super Bright
5mm White & Green LED Lamp |
(5) Rugged design
suitable for both indoor & outdoor use |
|
(3) Moisture &
UV Resistance Epoxy Len |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Operating Temperature |
-40
to +85 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Lead Soldering Temperature |
2600C for 6 seconds |
|
(1) Pulse width of
1/10 duty and 0.10msec max. width, for long operating life, max. of 20mA
recommended
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward Voltage
(White) |
VF (White) |
IF
= 20mA |
3.0 |
|
3.5 |
V |
|
Forward
Voltage (Green) |
VF (Green) |
IF
= 20mA |
3.0 |
|
3.5 |
V |
|
Reverse
Voltage |
VR |
IR
= 100mA |
|
|
5 |
V |
|
Dominant
Wavelength (White) |
lD |
IF
= 20mA |
|
6500 |
|
K |
|
Dominant
Wavelength (Green) |
lD |
IF
= 20mA |
520 |
|
525 |
nm |
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
30 |
|
Deg. |
|
Luminous
Intensity (White) |
IV |
IF
= 20mA |
5,000 |
|
12,000 |
mcd |
|
Luminous
Intensity (Green) |
IV |
IF
= 20mA |
5,000 |
|
9,500 |
mcd |

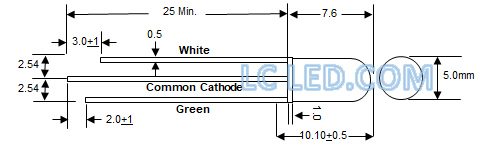

DEVICE DRAWING
|
LC LED Corporation |
